The EMC bracket combined with the matching PFS EMC shield clamp is perfect in conjunction with the KEL cable entry frame for alleviating interferences due to shields.
The EMC clamp is assembled inside the control panel. For this process the fixing screws for the assembly of the KEL frame on the panel are used. A female screw thread M5 is already integrated in the KEL-EMC-PF bracket.
The KDR-EMC-PFM type can be mounted on icotek enclosure base plates with slide frames KDR-ESR-VX25.
Depending on the cable diameter, the corresponding PFS shield clamp can be snapped onto the EMC bracket.
| Material | Mild steel, galvanically zinc plated |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |

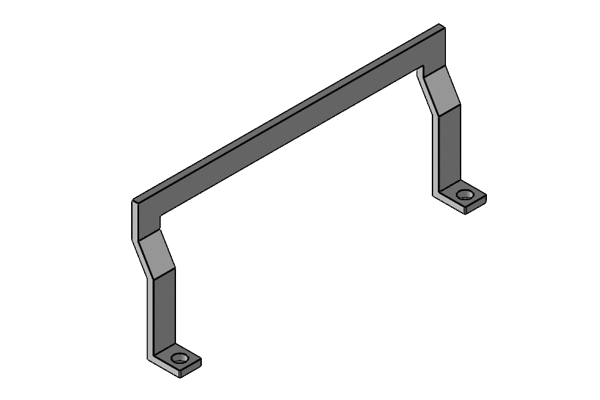

| Part No. | 39180 |
| EAN | 4251269305993 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 140 mm |
| Length L2 | 130 mm |
| Width | 35 mm |
| Height | 13 mm |
| Mounting height | 13 mm |
| Suitable for cable entry systems: | KEL-ER 24, KEL-ER-E5, KEL 24, KEL-E5, KEL-U 24, KEL-FG-E5, KEL-FA 24, KEL-QUICK 24, KEL-QUICK-E5, KEL-BES 24, KEL-BES-S 24, KEL-DPZ 24, KEL-DPZ-E, KEL-DPU 24 |
| Part No. | 39170 |
| EAN | 4251269305986 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 113 mm |
| Length L2 | 103 mm |
| Width | 35 mm |
| Height | 13 mm |
| Mounting height | 13 mm |
| Suitable for cable entry systems: | KEL-ER 16, KEL-ER-E4, KEL 16, KEL-E4, KEL-U 16, KEL-FA 16, KEL-QUICK 16, KEL-QUICK-E4, KEL-BES 16, KEL-BES-S 16, KEL-DPZ 16 |

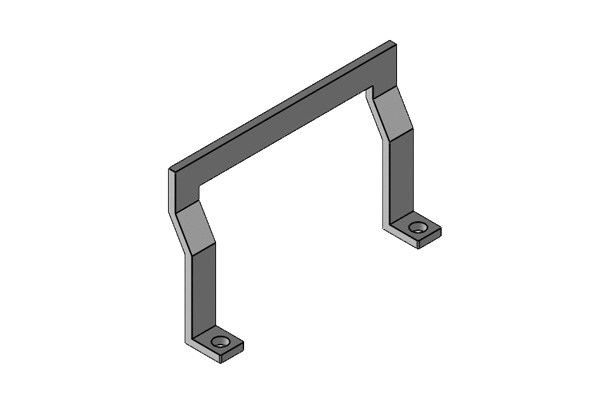

| Part No. | 39160 |
| EAN | 4251269305979 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 93 mm |
| Length L2 | 83 mm |
| Width | 35 mm |
| Height | 13 mm |
| Mounting height | 13 mm |
| Suitable for cable entry systems: | KEL-ER 10, KEL-ER-E3, KEL 10, KEL-E3, KEL-U 10, KEL-FG-E3, KEL-FA 10, MIS-E3|2, KEL-QUICK 10, KEL-QUICK-E3, KEL-BES 10, KEL-BES-S 10 |
| Part No. | 39150 |
| EAN | 4251269305962 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 68 mm |
| Length L2 | 58 mm |
| Width | 35 mm |
| Height | 13 mm |
| Mounting height | 13 mm |
| Suitable for cable entry systems: | KEL-ER-B, KEL-ER-E2, KEL-B, KEL-E2, KEL-U-B, KEL-FG-E2, KEL-QUICK-B, KEL-QUICK-E2, KEL-DPZ-B |
| Part No. | 39190 |
| EAN | 4251269318313 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 200 mm |
| Length L2 | 95 mm |
| Width | 35 mm |
| Height | 13 mm |
| Mounting height | 13 mm |
| Suitable for cable entry systems: | KEL 183, KEL 183-E |
| Part No. | 39181 |
| EAN | 4251269318368 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 140 mm |
| Length L2 | 130 mm |
| Width | 60 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Suitable for cable entry systems: | KEL-ER 24, KEL 24, KEL-U 24, KEL-FA 24, KEL-QUICK 24, KEL-BES 24, KEL-BES-S 24, KEL-DPZ 24, KEL-DPU 24 |
| Part No. | 39183 |
| EAN | 4251269318344 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 113 mm |
| Length L2 | 103 mm |
| Width | 60 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Suitable for cable entry systems: | KEL-ER 16, KEL 16, KEL-U 16, KEL-FA 16, KEL-QUICK 16, KEL-BES 16, KEL-BES-S 16, KEL-DPZ 16 |
| Part No. | 39184 |
| EAN | 4251269318351 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length L1 | 93 mm |
| Length L2 | 83 mm |
| Width | 60 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Suitable for cable entry systems: | KEL-ER 10, KEL 10, KEL-U 10, KEL-FA 10, KEL-QUICK 10, KEL-BES 10, KEL-BES-S 10 |
| Part No. | 39191 |
| EAN | 4251269321528 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length | 140 mm |
| Length L2 | 130 mm |
| Width | 60 mm |
| Height | 30.5 mm |
| Mounting height | 30.5 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Suitable for cable entry systems: | KDR-ESR-VX25 |
| Part No. | 39192 |
| EAN | 4251269321535 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Kabeleinführungen, Metal sheets |
| Length | 113 mm |
| Length L2 | 103 mm |
| Width | 60 mm |
| Height | 30.5 mm |
| Mounting height | 30.5 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Suitable for cable entry systems: | KDR-ESR-VX25 |
